DVR

 iDVR5104/5108/5116H-F

Support 1ch face detection, instant playback and face index playback
>Up to 4/8/16 cameras with 1080p realtime preview
>H.264 dual-stream video compression
>iDVR5104/5108/5116H-F: All channel 960H realtime recording
>HDMI/VGA/TV simultaneous video output
>4/8/16channel synchronous realtime playback, GRID interface & smart search
>3D intelligent positioning with Dahua PTZ dome camera
>Support 1 SATA HDD up to 4TB, 2 USB2.0
>Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS)&Smart Phone(DMSS)

iDVR5104/5108/5116HE-F

Support 1ch face detection, instant playback and face index playback
>Up to 4/8/16 cameras with 1080p realtime preview
>H.264 dual-stream video compression
>iDVR5104/5108/5116HE-F: All channel 960H realtime recording
>HDMI/VGA/TV simultaneous video output
>4/8/16 channel synchronous realtime playback, GRID interface & smart search
>3D intelligent positioning with Dahua PTZ dome camera
>Support 1 SATA HDD up to 4TB, 2 USB2.0
>Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS)&Smart Phone(DMSS)

DVR7224/7232L

>Up to 24/32 cameras with 1080p realtime preview
>H.264 dual-stream video compression
>All channel 960H realtime recording
>Support A/D switch
>2HDMI/VGA/TV/Spot simultaneous video output
>16 channel simultaneous realtime playback, GRID interface & smart search
>3D intelligent positioning with Dahua PTZ dome camera
>Support 2 SATA HDDs up to 8TB, 1 eSATA up to 16TB,3 USB2.0
>Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS)&Smart Phone(DMSS)




DVR BORSCHE & AVTECH




KT7604ED-NA Full 960H Video Recording with P2P function (option)

39

4CH H.264 PENTAPLEX D1, Full 960H Video Recording 4 ch AUDIO, VGA, NETWORK

  • Live, recording, playback, backup & remote acces
  • Video Input: 4 CH Input / BNC
  • Video Output: 1CH BNC, 1CH VGA (1280*1024)
  • Audio Input/Output: 4CH RCA/1CH RCA
  • Display Resolution PAL: D1 (704*576), NTSC: D1 (704*480)
  • Recording frame: D1@100fps, HD1@100fps, CIF@100fps
  • Display Picture: 1/4CH/PIP/ZOOM
  • Playback Mode:1/4CH playback
  • Browser: IE6.0-9.0/Firefox / Chrome/Opera/Apple Safari, OS Windows XP/Vista/Win 7
  • HDD Type: 1 SATA HDD, capacity to 2TB (No HDD Included)
  • Mobile Phone: Android, iPhone, Blackberry, Symbian,Windows

KT7604ED-NA Full 960H Video Recording , with P2P function , Free DDNS service,

39
4CH H.264 PENTAPLEX D1, Full 960H Video Recording 4 ch AUDIO, VGA, NETWORK

  • Live, recording, playback, backup & remote acces
  • Video Input: 4 CH Input / BNC
  • Video Output: 1CH BNC, 1CH VGA (1280*1024)
  • Audio Input/Output: 4CH RCA/1CH RCA
  • Display Resolution PAL: D1 (704*576), NTSC: D1 (704*480)
  • Recording frame: D1@100fps, HD1@100fps, CIF@100fps
  • Display Picture: 1/4CH/PIP/ZOOM
  • Playback Mode:1/4CH playback
  • Browser: IE6.0-9.0/Firefox / Chrome/Opera/Apple Safari, OS Windows XP/Vista/Win 7
  • HDD Type: 1 SATA HDD, capacity to 2TB (No HDD Included)
  • Mobile Phone: Android, iPhone, Blackberry, Symbian,Windows

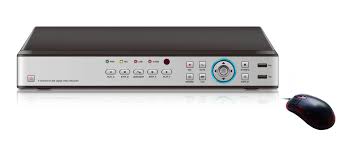

KT78804H , DVR СО МАКЕДОНЕСКО МЕНИ

40
4CH H.264 PENTAPLEX D1, AUDIO, VGA, NETWORK, ALARM, with HDMI port

  • Live, recording, playback, backup & remote access
  • Video Input: 4 CH Input / BNC
  • Video Output: 1CH BNC, 1CH VGA (1280*1024) , HDMI 1920×1080
  • Audio Input/Output: 4CH RCA/1CH RCA
  • Display Resolution PAL: D1 (704*576), NTSC: D1 (704*480)
  • Recording frame: D1@100fps, HD1@100fps, CIF@100fps
  • Display Picture: 1/4CH/PIP/ZOOM
  • Playback Mode: 1/4CH playback
  • Network port and Protocol: RJ-45 10/100M via Ethernet,
  • Support TCP/IP, PPPOE, DHCP, DDNS, UPNP
  • Browser: IE6.0-9.0/Firefox / Chrome/Opera/Apple Safari, OS Windows XP/Vista/Win 7
  • Client software CMS: Support One CMS for at most 100 DVRs
  • HDD Type: 1SATA HDD, capacity to 2TB (No HDD Included)
  • Mobile Phone: Android, iPhone, Blackberry, Symbian,Windows

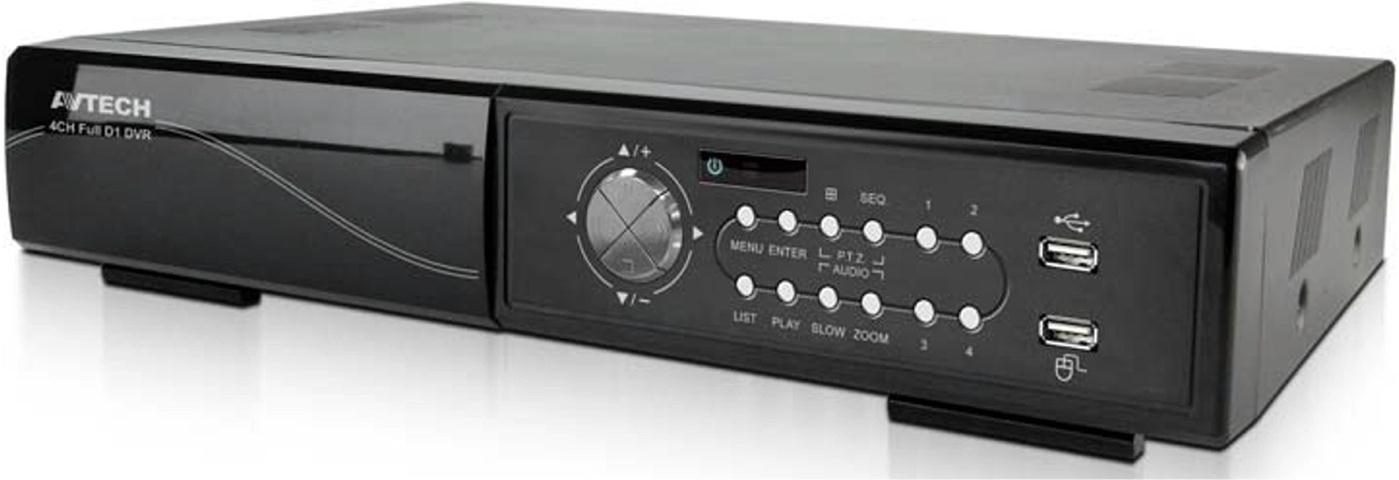

MDR752C , AVTECH Free DDNS service

41
4CH H.264 Full D1 100fr, 4ch AUDIO, VGA , NETWORK, PTZ

  • Live, recording, playback, backup, network opreations
  • Video Input: 4 CH Input / BNC
  • Video Output: 1CH BNC,1CH VGA (Output resolution up to 1600X1200)
  • Maximum Recording Rate Frame 704×576 pixels with 100 IPS PAL,
  • Field 704×288 pixels with 100 IPS PAL, CIF 352×288 pixels with 100 IPS PAL
  • Audio Input/Output : 4CH RCA/1CH RCA
  • Display Resolution PAL: D1 (704*576), NTSC: D1 (704*480)
  • Recording frame: D1@100fps, HD1@100fps, CIF@100fps
  • Display Picture: 1/4CH/PIP/2x ZOOM
  • Network transmission: 4/8CH real-time network transmission
  • Network port and Protocol: RJ-45 10/100M via Ethernet, Support TCP/IP, PPPOE, DHCP,
  • DDNS, UPNP
  • Browser: IE6.0-9.0/Firefox / Chrome/Opera/Apple Safari, OS Windows XP/Vista/Win7
  • HDD Type: 1 SATA HDD, capacity to 2TB (No HDD Included)

 KPD675D , AVTECH Free DDNS service

42

4CH H.264 Full 960H Video Recording ,Push Status , 4ch AUDIO, VGA , NETWORK,
PTZ , HDMI 1080P (Full HD Display)

  • Live display, recording, playback, backup, network opreations
  • Video Input: 4 CH Input / BNC
  • Video Output: 1CH BNC,1CH VGA (Output resolution up to 1600X1200) HDMI 1080P (Full HD Display)
  • Maximum Recording Rate Frame 960×576 pixels with 100 IPS PAL,
  • Frame 704×576 pixels with 100 IPS PAL, CIF 352×288 pixels with 100 IPS PAL
  • Audio Input/Output : 4CH RCA/1CH RCA
  • Display Picture: 1/4CH/PIP/2x ZOOM
  • Network transmission: 4/8CH real-time network transmission
  • Network port and Protocol: RJ-45 10/100M via Ethernet, Support TCP/IP, PPPOE, DHCP,DDNS .
  • Browser: IE6.0-9.0/Firefox / Chrome/Opera/Apple Safari, OS Windows XP/Vista/Win7
  • HDD Type: 1 SATA HDD, capacity to 3TB (No HDD Included)

 KT7608EC-NA Full 960H Video Recording , with P2P function (option)



39


DVR СО МАКЕДОНСКО МЕНИ
8CH H.264 PENTAPLEX D1, Full 960H Video Recording 8 ch AUDIO, VGA, NETWORK

  • Live, recording, playback, backup & remote access
  • Video Input: 8 CH Input / BNC
  • Video Output: 1CH BNC, 1CH VGA (1280*1024)
  • Audio Input/Output: 8CH RCA/1CH RCA
  • Display Resolution PAL: D1 (704*576), NTSC: D1(704*480)
  • Recording frame: D1@50fps, HD1@100fps, CIF@200fps
  • Display Picture: 1/4/8CH/PIP/ZOOM
  • Playback Mode: 1/8CH playback
  • Network port and Protocol: RJ-45 10/100M via Ethernet, Support TCP/IP, PPPOE, DHCP,DDNS, UPNP
  • Browser: IE6.0-9.0/Firefox / Chrome/Opera/Apple Safari, OS Windows XP/Vista/Win 7
  • Client software /CMS: Support One CMS for at most 100 DVRs
  • HDD Type: 1 SATA HDD, capacity to 2TB (No HDD Included)
  • Mobile Phone: Android, iPhone, Blackberry, Symbian,Windows
