Paradox

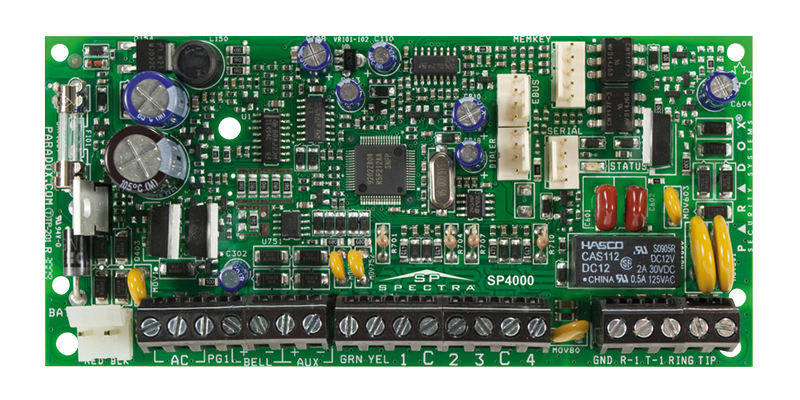

Paradox Control Panel SP4000

46

  • Supports StayD mode
  • On-board Zones: 4 (8 with ATZ)
  • Keypad Zones: 15
  • Expandable to 32 zones
  • PGMs: 12 (1 on-board)
  • 2 Partitions
  • 4-wire expansion bus
  • 32 User Codes
  • Supports PCS Series
  • Supports IP100 Internet Module
  • Supports VDMP3 Plug-in voice dialer
  • Wireless Expansion (RTX3), one way transmitters only
  • In-field firmware upgradeable via a 307USB
  • Multiple phone numbers: 3 for monitoring station, 5 for personal dialing and 1 for pager reporting
  • 256 events buffered
  • Without box and keypad

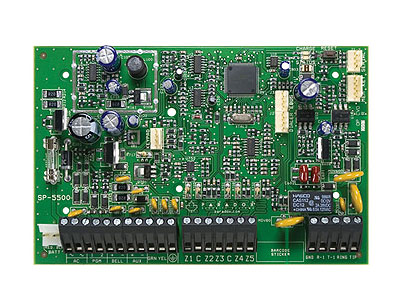

 Paradox Control Panel SP5500

47

  • Supports StayD mode
  • On-board Zones: 5 (10 with ATZ)
  • Keypad Zones: 15
  • Expandable to 32 zones
  • PGMs: 16 (2 on-board)
  • 2 Partitions
  • 4-wire expansion bus
  • 32 User Codes
  • Supports PSC100 GSM Module
  • Supports IP100 Internet Module
  • Supports VDMP3 Plug-in voice dialer
  • Supports REM3 hand-held remote keypad (require RTX3 V1.31 or higher)
  • In-field firmware upgradeable via a 307USB and WinLoad
  • Multiple phone numbers: 3 for monitoring station, 5 for personal dialing and 1 for pager reporting
  • 256 events buffered
  • Without box and keypad

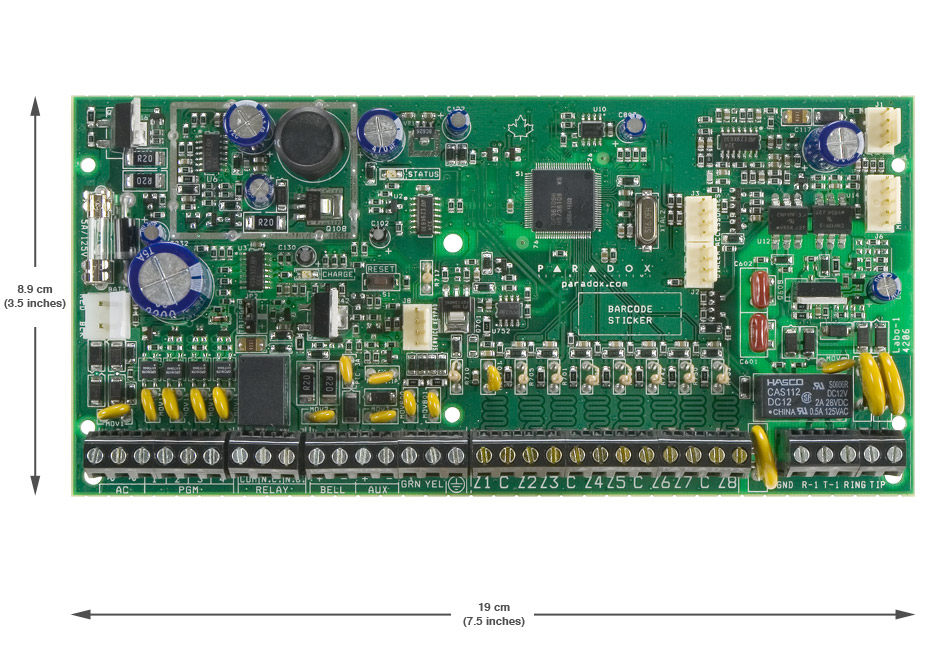

 Paradox Control Panel SP6000

48

  • Supports StayD mode
  • On-board Zones: 8 (16 with ATZ)
  • Keypad Zones: 15
  • Expandable to 32 zones
  • PGMs: 16 (2+2 on-board)
  • 2 Partitions
  • 4-wire expansion bus
  • 32 User Codes
  • Supports PSC100 GSM Module
  • Supports IP100 Internet Module
  • Supports VDMP3 Plug-in voice dialer
  • Supports REM3 hand-held remote keypad (require RTX3 V1.31 or higher)
  • In-field firmware upgradeable via a 307USB and WinLoad
  • Multiple phone numbers: 3 for monitoring station, 5 for personal dialing and 1 for pager reporting
  • 2-Wire Smoke Detector Input
  • 256 events buffered
  • Without box and keypad

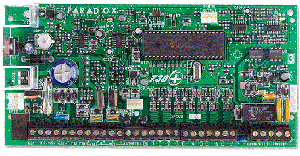

 PA-738ULT+646+WK-2

49

  • 18 Zones(8*2+2)
  • Tastatura + BOX + TRAFO + PA – 636 24 – Zone LED Keypads (horizontal )

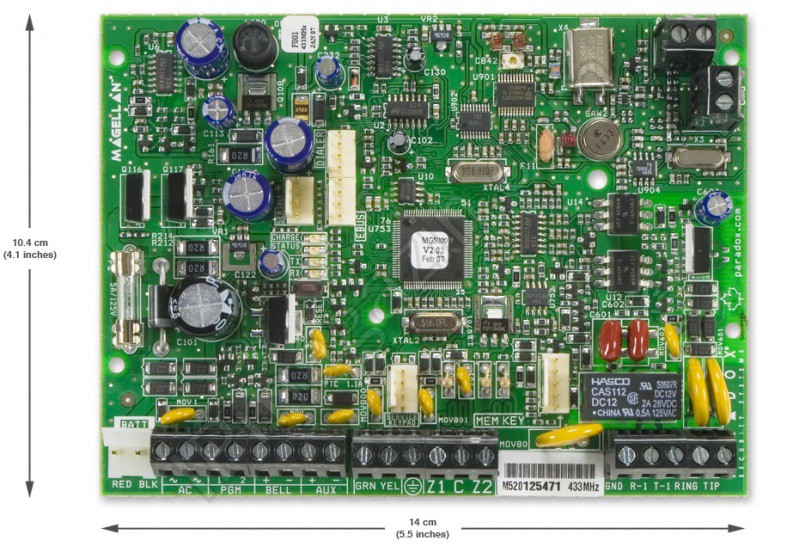

 Paradox Wireless Control Panel MG5000

50

  • StayD Mode
  • Built-in transceiver (433MHz)
  • 32 zones (any of which can be wireless)
  • 32 users and 32 remote controls (one per user)
  • 2 partitions
  • 4-wire communication bus (connect up to 15 keypads)
  • Supports REM3 hand-held remote keypad
  • Supports up to 8 K32RF / K37 wireless keypads
  • Supports up to 2 RPT1 wireless repeaters
  • Supports PCS Series
  • Supports IP100 Internet Module
  • Supports VDMP3 Plug-in voice dialer
  • Supports 16 PGMs (any of which can be wireless)
  • In-field firmware upgrade via 307USB and WinLoad
  • Multiple telephone numbers for event reporting: 3 monitoring, 5 for Personal Dialing and 1 for pager
  • 256 events buffered
  • Without box and keypad
  • Without remote control REM15

 Paradox Wireless Control Panel MG5050

51

  • StayD Mode
  • Built-in transceiver (433MHz)
  • 32 zones (any of which can be wireless)
  • 32 users and 32 remote controls (one per user)
  • 2 partitions
  • 4-wire communication bus (connect up to 15 keypads)
  • Supports REM3 hand-held remote keypad
  • Supports up to 8 K32RF / K37 wireless keypads
  • Supports up to 2 RPT1 wireless repeaters
  • Supports PCS Series
  • Supports IP100 Internet Module
  • Supports VDMP3 Plug-in voice dialer
  • Supports 16 PGMs (any of which can be wireless)
  • In-field firmware upgrade via 307USB and WinLoad
  • Multiple telephone numbers for event reporting: 3
  • Monitoring, 5 for Personal Dialing and 1 for pager
  • 256 events buffered

Paradox GPRS14

63

  • Communication Plug-in Module
  • Accessory for the MG6250, used to support GPRS/GSM/SMS reporting
  • Supports 2 standard GSM provider SIM cards, for provider redundancy
  • Simple installation; connects directly onto PCB

Paradox Wireless Console with GPRS/GSM MG6250 without remote control

64



  • Simultaneous Five-channel Reporting Offers reporting via GPRS, GSM, SMS, Voice, and traditional landline, with predefined communication sequences to save installation time.
  • 2 partitions and up to 64 wireless zones
  • Supports optional quad-band GPRS/GSM module with 2 SIM cards (GPRS14)
  • Built-in transceiver (433 MHz)
  • Speakerphone via GSM or landline
  • Built-in voice and utility reporting(up to 8 telephone numbers)
  • Two-way voice communication (via GSM or landline)
  • 16 users and 16 remote controls
  • 8 wireless PGMs (2 I/Os can be hardwired)
  • 256 events buffered
  • Supports 4 wireless sirens (SR150)
  • Supports 4 wireless keypads (K32RF/K37), displays first 32 zones only
  • Supports 4 wireless repeaters (RPT1)
  • Supports 16 two-way remotes (REM2/REM3)
  • Built-in 90 dB siren
  • Remote firmware upgrade via GPRS
  • Full voice-assisted remote system access via GSM
  • High-quality sound for voice tags and menu guidance
  • Family message center (up to 30 sec. w/ time stamp)
  • Clock with alarm
  • With 7.5 Vdc Power Adapter Plug for MG6250

Paradox keypad K646

65

  • 10-zone LED display
  • Compatible with E55, MG5000, MG5050 and Spectra SP series
  • Single partition keypad
  • StayD status LED
  • Patented Key Light display (button lights up to indicate an open zone)
  • Arm, Sleep, Stay and Off keys illuminate to indicate partition status
  • Adjustable backlight

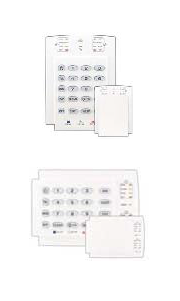

Paradox keypad К10 H/V

66

  • 10-zone LED display
  • Compatible with MG5000, MG5050 and Spectra SP series
  • Supports StayD Mode
  • Separate Arm, Sleep, Stay and Off LEDs per partition
  • Patented Key Light display (button lights up to indicate an open zone)
  • 1 keypad zone input
  • Independently set chime zones
  • 7 one-touch action buttons
  • 3 keypad-activated panic alarms
  • Adjustable backlight
  • Connects to 4-wire communication bus

 Paradox REM15 *

52

  • Remote Control with Backlit Buttons (433MHz)
  • Water resistant
  • Perform up to 5 different actions
  • Wireless range in a typical residential environment:
  • 30m with all-in-one consoles and RX1
  • 45m with MG5000 / MG5050
  • 60m with RTX3

 Paradox REM101 *

53

  • Emergency/Panic Remote Control (433MHz)
  • Water resistant
  • Panic function allows user to instantly send panic signal to monitoring station
  • Manually-activated battery test function
  • Visual indicator (LED) for arming actions and battery testing
  • Includes lanyard attachment to facilitate portability; optional wrist strap and belt clip also available
  • Includes easily-replaceable CR2032 battery, with a battery life of 3 years
  • Wireless range in a typical residential environment:
  • 30m with MG6130 / MG6160 / MG6250 and RX1
  • 45m with MG5000 / MG5050, K32LX and K641LX
  • 60m with RTX3

 PARADOX Metal Box

54

  • 28cm X 24.5cm X 7.6cm (11″ x11″ x 3″)
  • Provision for multiple module and panel mounting
  • Many punch-out holes for simple wiring
  • Easy door removal

 PARADOX Metal Box + TRAFO M/T 16.6V, Transformer 30VA

54

  • 28cm X 24.5cm X 7.6cm (11″ x11″ x 3″)
  • Provision for multiple module and panel mounting
  • Many punch-out holes for simple wiring
  • Easy door removal

Paradox keypad K32LCD

184


32-character blue LCD with programmable labels
Real-time zone alarm display (until disarmed)
In-field firmware upgrade via 307USB and WinLoad
StayD status LED
1 keypad zone input
8 one-touch action buttons
3 keypad-activated panic alarms
Adjustable backlight, contrast and scroll speed
Connects to 4-wire expansion bus
Compatible with MG5000, MG5050 and Spectra SP series V2.31 and up
Compatible with SP4000, SP65 V4.90 and up


Paradox keypad K32RF *

185
32-Zone Wireless LED Keypad Module
Supports StayD Mode
Built-in transceiver (433MHz)
32-zone LED display
Separate Arm, Sleep, Stay and Off LEDs per partition
In-field firmware upgrade via 307USB and WinLoad
Wireless range in a typical residential environment: 40m
8 one-touch action buttons
3 keypad-activated panic alarms
Adjustable backlight
Compatible with MG5000, MG5050 and Spectra SP series (except SP4000)
Powered by a 6Vdc power source (PA6 is mandatory)


Power Adapter Plug PA6

186
For the K32RF and K32WK
Provides 6Vdc at 350mA max


Paradox 476

187
Analog Single-Optic PIR
11m x 11m and up to 15m for center beams with 88.5° viewing angle
Extremely high EMI and RFI rejection
PCB uses only surface mount components
Solid-state relay
Patented Auto Pulse Signal Processing
Automatic Temperature Compensation
Metal shield maximizes protection from EMI and RFI signals
Dual element sensor
Anti-tamper switch


Paradox 476 PET P2C

188
Analog Single-Optic PIR
Immune to animals weighing up to 18kg
11m x 11m and up to 15m for center beams with 88.5° viewing angle
Extremely high EMI and RFI rejection
PCB uses only surface mount components
Solid-state relay
Patented Auto Pulse Signal Processing
Automatic Temperature Compensation
Metal shield maximizes protection from EMI and RFI signals
Dual element sensor
Anti-tamper switch


Paradox DG85 *

189
Outdoor High-Security Digital Motion Detector
Impact and temperature resistant casing (-35°C to 50°C )
Patented Digital Motion Detection
Extremely reliable and false-alarm free
Dual Optical Filtering System
UV protected lens
Dual optics (2 dual opposed element sensors)
Digital Dual Opposed Detection
Multi-level sensitivity adjustment
Two operational modes (Bus or Relay operation)


Paradox 457 *

190
Glassbreak Detector
Conventional solid-state relay operation
Full audio and infrasonic spectrum analysis
7 frequency digital filters, digital amplifier gain and frequency fluctuation assessment
Impact and shock wave analysis
High-immunity to RFI and EMI signals
Adjustable sensitivity: covers up to 9m when set to high and up to 4.5m when set to low
Anti-tamper switch


Paradox DG467 *

191
360° Ceiling Mounted Digital Motion Detector
Two operational modes (addressable for the Digiplex and
Digiplex EVO series or conventional relay operation)
Dual opposed element sensor
Digital Detection
7m x 6m at 2.4m
11m x 6m at 3.7m
360° viewing angle


Paradox PMD2P *

192
Wireless Analog Single-Optic PIR (433MHz)
Dual element sensor
Immune to animals weighing up to 18kg
11m x 11m and up to 15m for center beams with 88.5° viewing angle
Wireless range in a typical residential environment:
35m with MG6160, MG6130;
70m with MG5000, MG5050 and RTX3
Patented Auto Pulse Signal Processing
Automatic Temperature Compensation
Alive software (alarm LED continues to display when PIR is in energy save mode without compromising battery life)
3-minute energy save mode after two detections within a five-minute period


Paradox G550 *

193
Wireless Glassbreak Detector (433MHz)
6m radius range and 360º coverage pattern protects an entire room with one sensor
Detect breaking of different types of glass including plate,tampered, laminated and wired
Standard Alkaline 3x AAA type battery with low battery supervision
Factory-set sensitivity for safer installation
Recognizes actual pattern of breaking glass across the full audio band
Impact and shock wave analysis
High-immunity to RFI and EMI signals


Paradox PMD85 *

194
Wireless Outdoor Digital Dual-Optic PIR (433MHz)
Impact and temperature resistant casing
Operates at -35°C to +50°C
UV protected lens
Dual Optical Filtering System
Multi-level sensitivity adjustment
Patented Digital Motion Detection
Dual optics (2 dual opposed element sensors)
Digital Dual Opposed Detection
Alive software (alarm LED continues to display when PIR is in energy save mode without compromising battery life)
3-minute energy save mode after two detections within a five-minute period


Paradox SD738 *

195
Wireless Smoke Detector (433MHz)
One high-sensitivity photoelectric smoke sensor
Built-in siren
Wireless range in a typical residential environment:
30m with MG6160 / MG6130;
60m with MG5000 / MG5050 and RTX3


GSM-02 LCD GSM Home Alarm System with back up battery

196
Standard package includes:
1 Main host,
1 PIR sensor,
1 door sensor,
2 Remote controllers,
1 adapter,
1 mini siren,
(GSM-02 GSM freq:900/1800Mhz)
(GSM-02A GSM freq:850/1900Mhz)


M-WSR201 Wireless Signal Repeater with Adapter

197
It is a special device for extending the wireless signals;
Working voltage: DC12V;
Operating current: 150mA-180mA;
Distance extend 500-1000m;


IR202 Wireless PIR motion detector with ON/OFF switch

198
Power 6F22 battery 9V,
Low power indication,
Adjustable time for alarm delay detecting,
Distance adjustable,
Automatically temp. compensation,
Anti-RFI & anti-EMI battery life 1-2 year,
Detecting distance:12m detecting angle: 110 degrees


IR401 Wireless wide angle ceiling PIR sensor

199
Ceiling mounted,
9V D.C. triple pulse,
Count adjustment, N.C. or N.O. for choice,
Automatically temp. compensation,
Detecting distance: φ8m, detecting angle: 360 degrees


PT102 wireless PIR Motion Detector with pet immunity

200


PST-WHS101 Wireless Heat+Smoke Detector

201
Installation:Ceiling mounted
Alarm temperature:57℃(135F)
Power: 6F22 battery 9V;
Open distance: 100-150m;
Have 2262 and 1527 IC Option;


SD201 Wireless photoelectronic smoke detector

202
9V battery,
Radio Frequency: 315M or 433M,
Radio distance more than 100m (open area),
Alarm volume: more than 85dB/m,


SD202 Wireless Ionic smoke detector

202
9V battery,
Sound & flash alarm,
Radio frequency; 315M or 433M,
Radio distance: more the 100m (open area),
Alarm volume: more than 85dB/m.


DS201 Wireless Door/Window Magnetic Sensor

203
It is consisted of transmitter and magnetic part,
it is used to detect door, window, or drawer if it is opened or moved ,
12 Volt battery included for 3 months,
it can be adhesive or by screws


PB101 Wireless Panic Button

204


RC101 Remote controller

205
It is used to arm, disarm, emergency help, open or close the siren for the main panel
Note: it is suitable for alarm host models: TEL211, TEL203, TEL204, TEL207, TEL208
White and wooden color optional


RC102 Remote controller

206
It is used to arm, disarm, emergency help, open or close the siren for the main panel
Note: it is suitable for alarm host models: GSM-01, GSM-02


FS201 Wireless flashing & sound siren

207
It is used with the main panel
